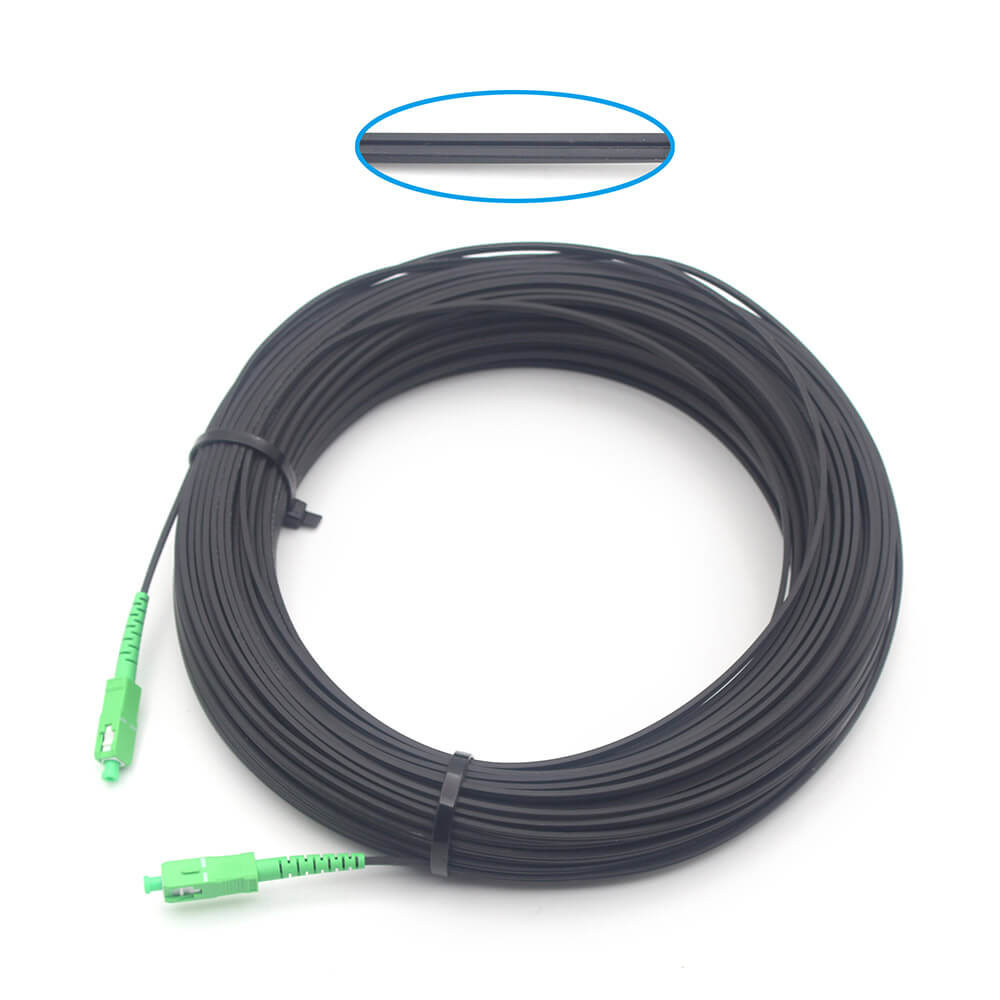

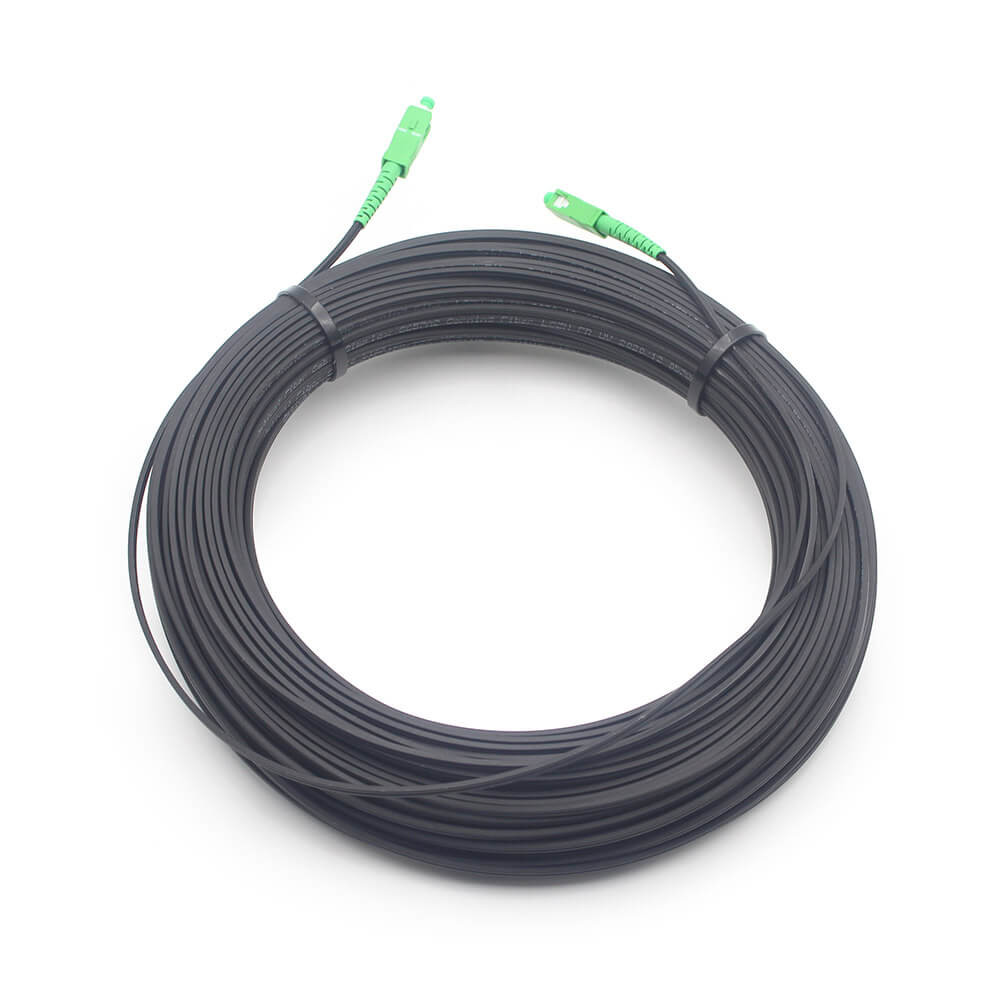

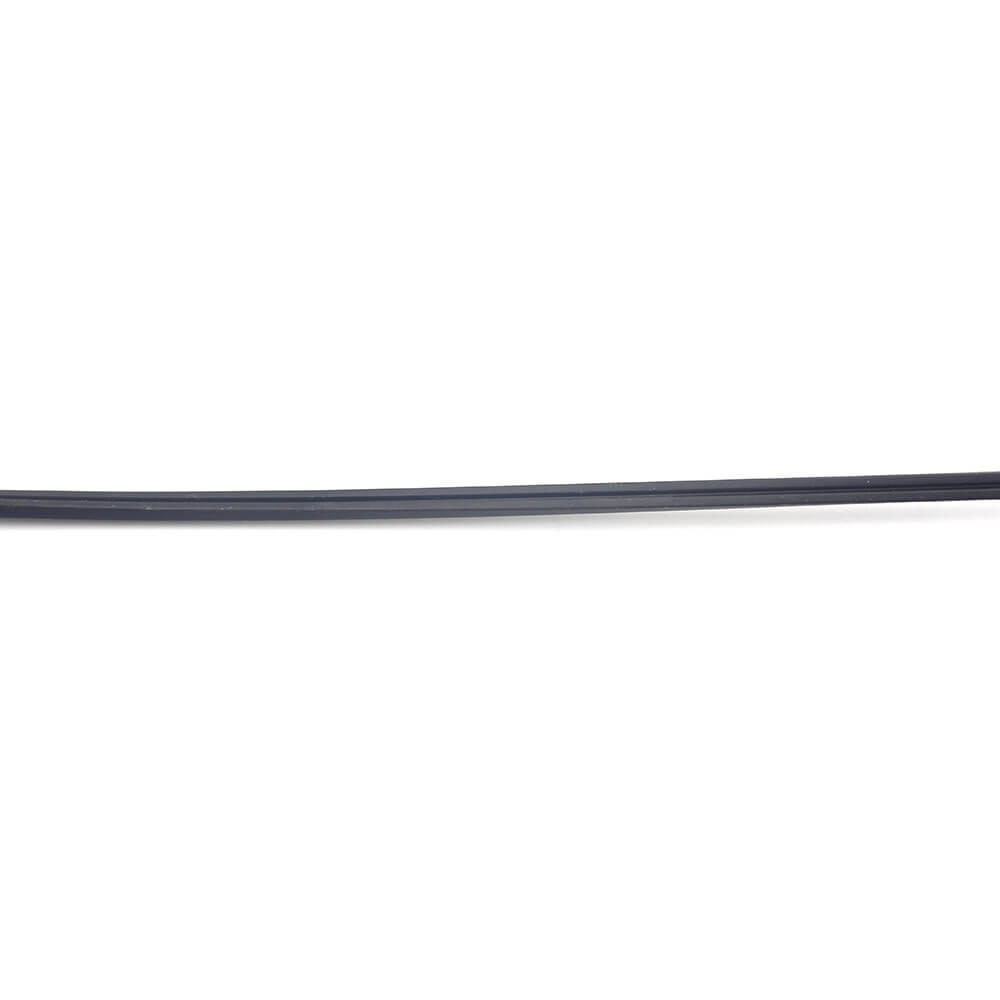

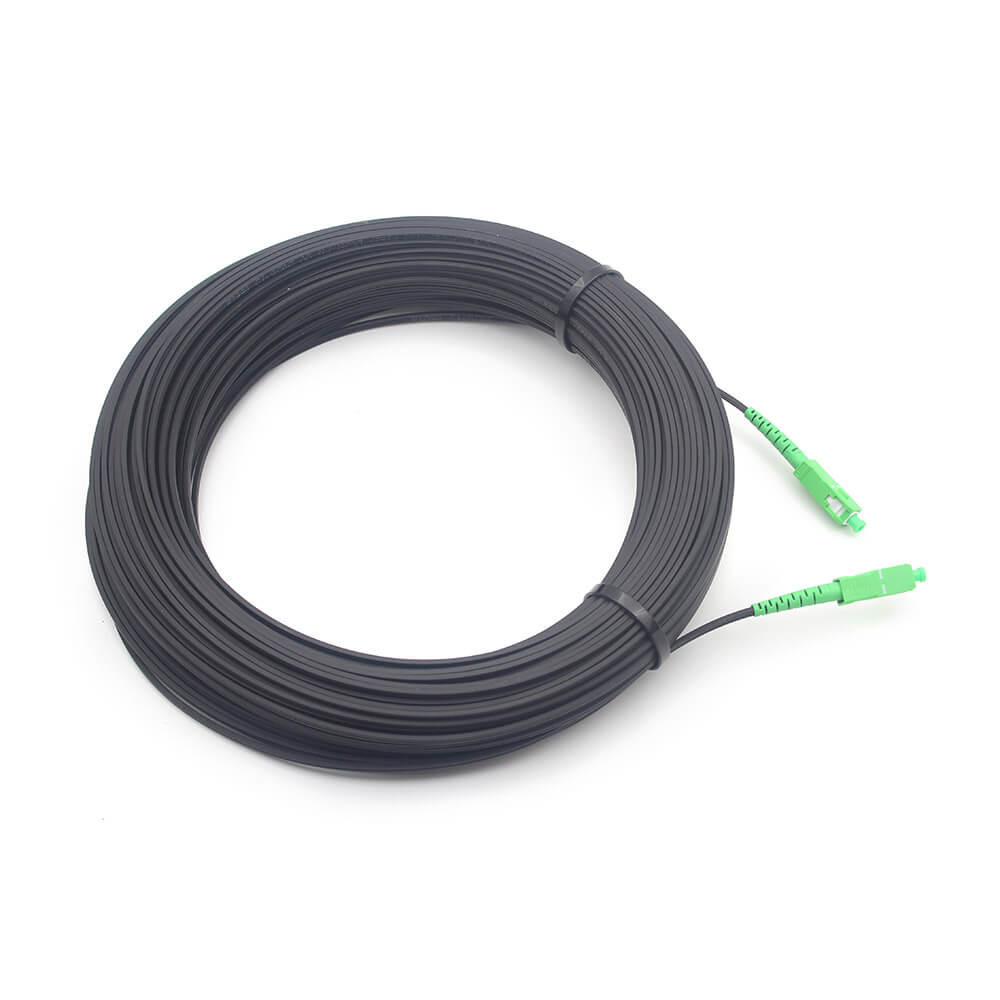

2.0*3.0mm 2.0*5.0mm FTTH Flat Drop Patch Cord For Outdoor Indoor

2.0*3.0mm 2.0*5.0mm FTTH Flat Drop Patch Cord For Outdoor Indoor
2.0*3.0mm 2.0*5.0mm FTTH Flat Drop Patch Cord For Outdoor Indoor 2.0*3.0mm 2.0*5.0mm FTTH Flat Drop Patch Cord For Outdoor Indoor 2.0*3.0mm 2.0*5.0mm FTTH Flat Drop Patch Cord For Outdoor Indoor 2.0*3.0mm 2.0*5.0mm FTTH Flat Drop Patch Cord For Outdoor Indoor

Imagem Grande :  2.0*3.0mm 2.0*5.0mm FTTH Flat Drop Patch Cord For Outdoor Indoor

Detalhes do produto:
Place of Origin: China
Marca: DOWELL
Model Number: DW-SA3-SA3
Condições de Pagamento e Envio:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS Per 7 Days
Contato

2.0*3.0mm 2.0*5.0mm FTTH Flat Drop Patch Cord For Outdoor Indoor

Descrição
Insertion loss: ≤0.2dB Pull-out force: ≤19.6.N
Working temperature: -20℃ to +70℃ Connector type: Click On type
Flame resistance: UL94-V0 Storage temperature: -40℃ to +85℃

2.0*3.0mm 2.0*5.0mm FTTH Flat Drop Patch Cord For Outdoor Indoor

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.

Specification:

1. Cable Parameters:

Cable Out sheath Weight Minimum allowable minimum allowable Minimum Bending Storage
Count Diameter (KG) Tensile Strength Crush Load Radius temperature
(F) (MM)   (N) (N/100mm) (MM) (℃)
      short term long term short term long term short term long term
1 (2.0±0.2)×(5.0±0.3) 21.7 400 200 2200 1000 20D 10D -20 ~ +60

2. Cable Parameters:

Cable Out sheath Weight Minimum allowable minimum allowable Minimum Bending Storage
Count Diameter (KG) Tensile Strength Crush Load Radius temperature
(F) (MM)   (N) (N/100mm) (MM) (℃)
      short term long term short term long term short term long term
1 (2.0±0.1)×(3.0±0.2) 8 100 50 500 100 20D 10D -20 ~ +60

3. Optical Characteristics:

Item Parameter Reference
  Single mode Multi mode
  Standard Elite Standard Elite /
Test the wavelength 1310-1550nm 850-1300nm /
Insertion loss(Typical) ≤0.30dB ≤0.20dB ≤0.5dB ≤0.20dB IEC 61300-3-34
Insertion loss(Max) ≤0.75dB ≤0.35dB ≤0.75dB ≤0.35dB
Return loss ≥50dB (PC)/ ≥55dB (PC)/ ≥30dB(PC) ≥30dB(PC) IEC 61300-3-6
≥60dB (APC) ≥65dB (APC)
Working temperature -20℃to +70℃ /
Storage temperature -40℃to +85℃ /

Cable Structure:

2.0*3.0mm 2.0*5.0mm FTTH Flat Drop Patch Cord For Outdoor Indoor 0

Features:

1.1 Good durability
1.2 Good exchangeability
1.3 High temperature stability
1.4 Low insertion loss and back reflection loss
1.5 Superior Quality Standard PC/UPC/APC Polishing
1.6 Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Application:
2.1 Telecom Net
2.2 Local Ring Net
2.3 Optical Fiber Sensor
2.4 Optical Fiber Test Equipment
2.5 Optical Fiber Communication System
2.6 FTTH,LAN,PON & Optical CATV.

etiqueta:

fibre patch leads,

fiber jumper cables,

multimode patch cable
