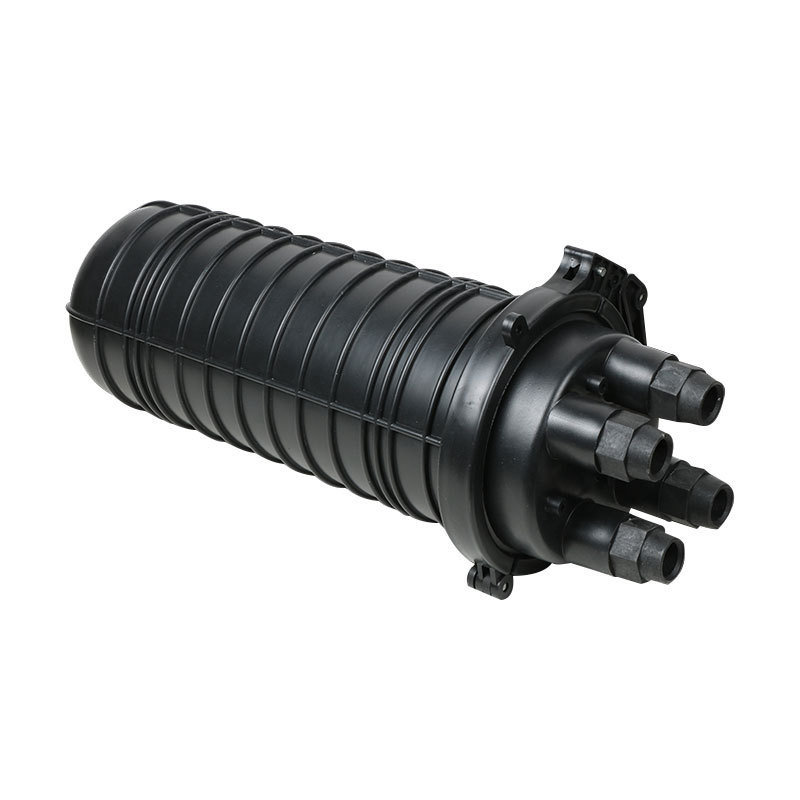

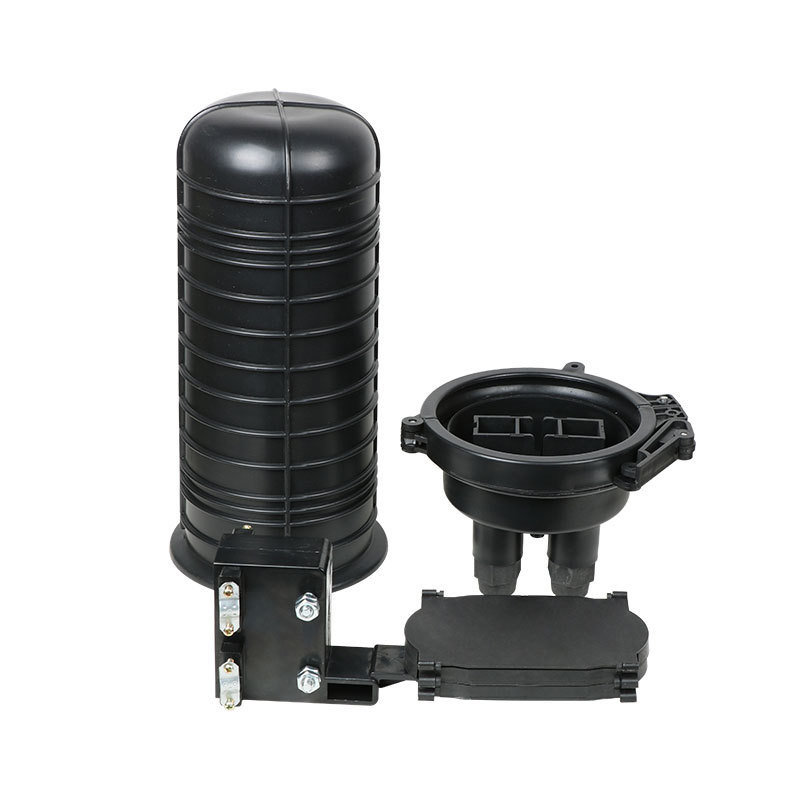

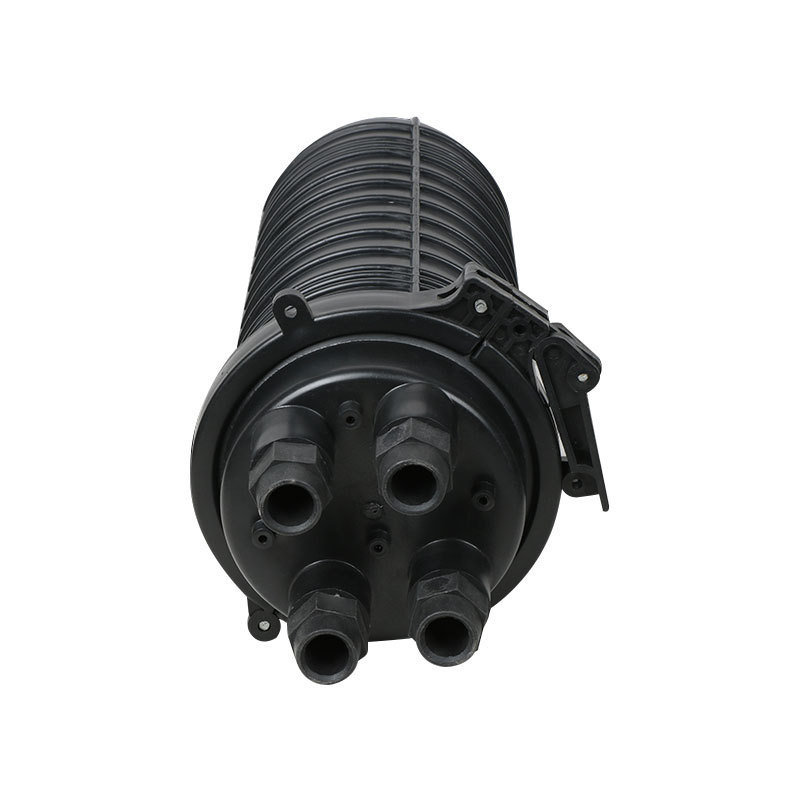

24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection
24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection 24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection 24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

Imagem Grande :  24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

Detalhes do produto:
Lugar de origem: China
Marca: DOWELL
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 200pcs
Tempo de entrega: 7 a 15 dias
Termos de pagamento: T/T
Habilidade da fonte: 1000pcs por 10 dias
Contato

24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

Descrição
Destacar:

24 cores Fiber Optic Splice Closure

,

2 In 2 Out Dome Fiber Closure

,

IP68 Fiber Optic Enclosure

Communications 24 cores Dome Fiber Optic Splice Closures 2 In 2 Out
Fiber optic enclosure is a protective housing designed to securely store and organize fiber optic cables, splices, connectors, and passive components. It is a critical part of any fiber optic network infrastructure, serving as the central point for managing, splicing, distributing, and protecting fragile fiber connections. Think of it as the "junction box" or "patch panel" for a fiber optic system.
Specification
Entry ports number 2 In 2 Out
Splice Capacity 24 Cores
Environmental IP20, UL 94 V-0
IP grade 68
Sealing Gel-sealed entry ports
Temp Range -40°C to +70°C
Features
  • Outer Housing / Shell: The main protective body.
  • Baseplate / Tray: The internal frame where all components are mounted.
  • Splice Tray: A modular tray that holds and protects individual fiber splices. Multiple trays can often be stacked.
  • Adapter Panels / Plates: Hold the fiber optic adapters (e.g., LC, SC, ST) that connect two patch cords.
  • Fiber Management System: Includes spools, bend-radius limiters, and cable ties to safely route and secure fibers without violating their minimum bend radius.
  • Cable Ports & Seals: Entry and exit points for cables, with grommets or seals to maintain environmental integrity.
  • Grounding Lug: A terminal for connecting a grounding wire for electrical safety (especially important for metal enclosures and cables with metal strength members).
Size
24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection 0
Parameter
Working Temperature: -40°C to +65°C
Atmospheric Pressure: 62~106Kpa
Axial Tension: >1000N/1min
Flatten Resistance: 2000N/100 mm (1min)
Insulation resistance: >2*10⁴MΩ
Voltage Strength: 15KV(DC)/1min, no arc over or breakdown
Durability: 25 years
