Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications

Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications
Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications

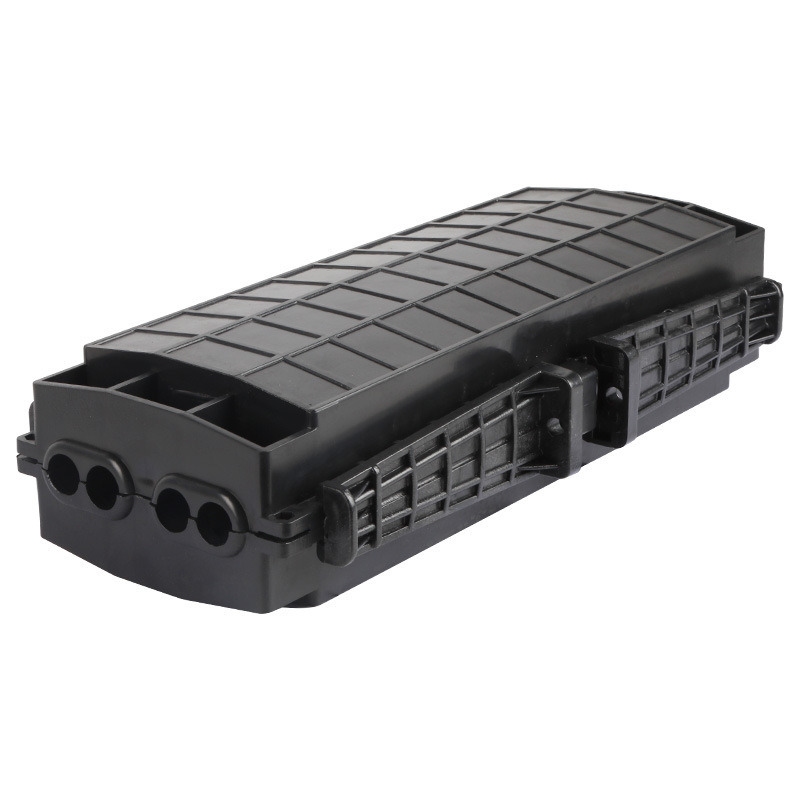

Imagem Grande :  Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications

Detalhes do produto:
Lugar de origem: China
Marca: DOWELL
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 200pcs
Tempo de entrega: 7 a 15 dias
Termos de pagamento: T/T
Habilidade da fonte: 1000pcs por 7 dias
Contato

Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications

Descrição
fita adesiva: Rotulagem, fixação temporária Álcool de etilo: Limpeza
Gaze: Limpeza Cortador da fibra: Cortando fibras
Descapsulador de fibras: Retire a camada protetora do cabo de fibra Ferramentas combinadas: Montagem do FOSC
Destacar:

2 Inlet 2 Out Fiber Optic Joint Closure

,

144 Cores Fiber Optic Splice Closure

,

IP65 Fiber Optic Junction Box

Outdoor 2 Inlet 2 Out Fiber Optic Joint Closure 144 Cores Solutions
A Fiber Optical Closure is designed for outdoor connections between optical distribution cables and indoor optical cables. Our Fiber Optical Splice Junction Box is suitable for aerial, duct, and direct buried applications, connecting to optical switches through fiber jumpers to protect against environmental degradation from heat, cold, light, oxygen, and microorganisms. The robust construction provides excellent mechanical strength, with a solid shell that withstands extreme environmental conditions while offering flame retardant and waterproof protection against vibration, impact, cable tension, and twisting.
Specification
Protection level IP65
Main material ABS, PP
Application Outdoor Aerial Dome, Buried, Pole Mount Type Outdoor
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1000N

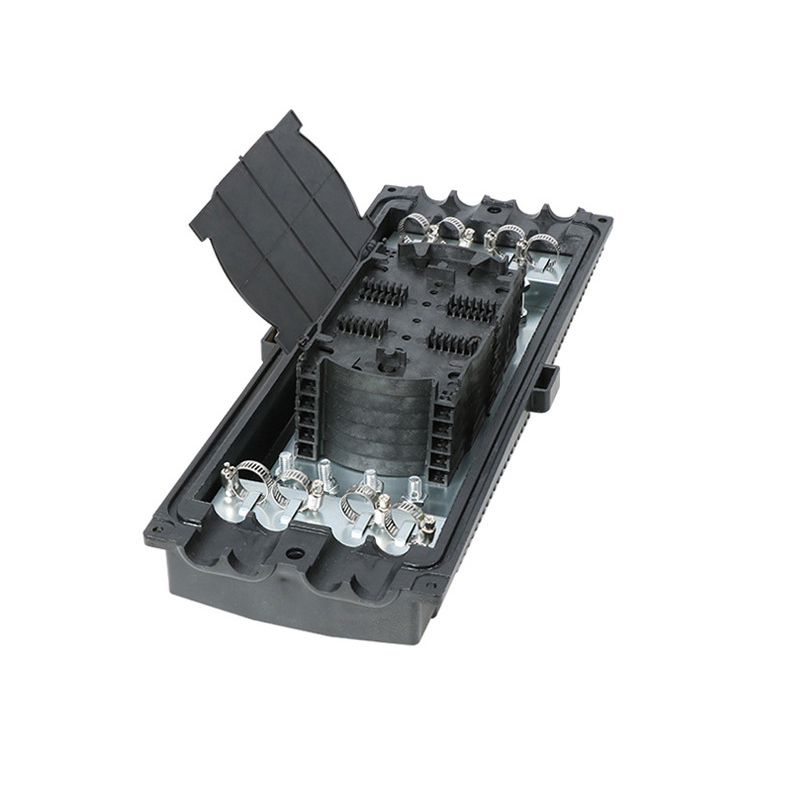

Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications 0
Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications 1
Application
1.1 Underground Installation
Designed to resist moisture, soil pressure, and corrosion, ensuring stable fiber connections in direct-buried optical cable projects.
1.2 Aerial Installation
Lightweight and wind-resistant design for utility pole mounting, with excellent sealing to withstand rain, snow, and UV radiation.
1.3 Duct Installation
Fitted in underground ducts to accommodate fiber splicing and management while preventing dust and moisture intrusion.
1.4 Indoor/Outdoor Transition
Protects connection points between indoor and outdoor optical cables from environmental changes and mechanical damage.
1.5 Fiber Distribution Points
Serves as intermediate nodes in FTTH (Fiber to the Home) networks, enabling fiber branching and connection for end-user access.
