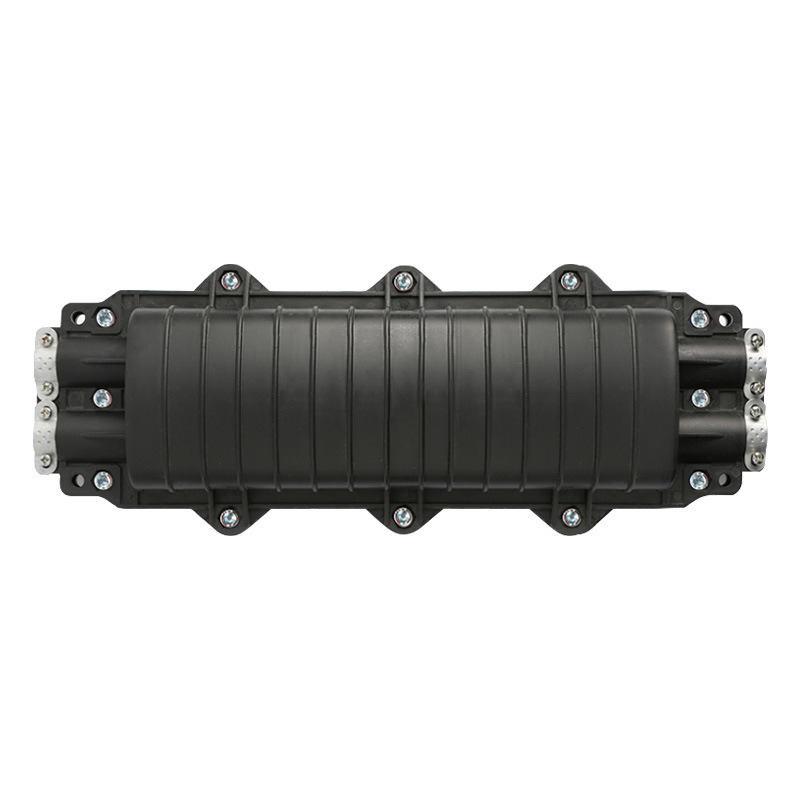

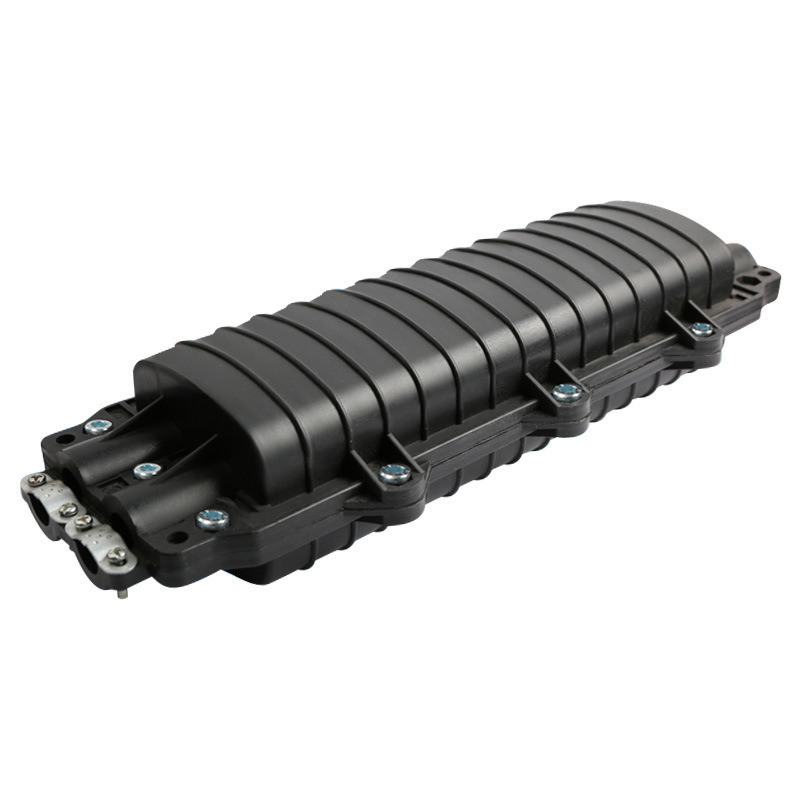

D Type Fiber Optic Splice Closure Up to 45 Cores with 465x190x120mm Dimensions for Secure Fiber Joint Protection

D Type Fiber Optic Splice Closure Up to 45 Cores with 465x190x120mm Dimensions for Secure Fiber Joint Protection
D Type Fiber Optic Splice Closure Up to 45 Cores with 465x190x120mm Dimensions for Secure Fiber Joint Protection D Type Fiber Optic Splice Closure Up to 45 Cores with 465x190x120mm Dimensions for Secure Fiber Joint Protection D Type Fiber Optic Splice Closure Up to 45 Cores with 465x190x120mm Dimensions for Secure Fiber Joint Protection

Imagem Grande :  D Type Fiber Optic Splice Closure Up to 45 Cores with 465x190x120mm Dimensions for Secure Fiber Joint Protection

Detalhes do produto:
Lugar de origem: China
Marca: DOWELL
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 200pcs
Tempo de entrega: 7 a 15 dias
Habilidade da fonte: 1000pcs por 10 dias
Contato

D Type Fiber Optic Splice Closure Up to 45 Cores with 465x190x120mm Dimensions for Secure Fiber Joint Protection

Descrição
Capacidade: 48 núcleos Cor: Preto
Nível de proteção: IP68 Material: PC+ABS, PP
Entrada/saída: 2+2 Método de vedação para entradas: Parafuso mecânico
Dimensão (mm): 465*190*120
Destacar:

Up to 45 Cores Fiber Optic Splice Closure

,

465x190x120mm Fiber Optic Joint Closure

,

D Type Fiber Splice Enclosure

D Type Fiber Optic Splice Closure Up to 45 Cores 2 in 2 out
Fiber optic closure, also known as fiber optic splicing closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings. It can provide protection for the fiber joint and the fiber cables since they have excellent mechanical strength and strong outer shell, which ensures the joints are not damaged by hostile environments.
Specifications
Color Black
Capacity 48 cores
Protection Level IP68
Material PC+ABS, PP
Inlet/Outlet 2+2
Sealing Method For Inlets Screw mechanical
Accessories
D Type Fiber Optic Splice Closure Up to 45 Cores with 465x190x120mm Dimensions for Secure Fiber Joint Protection 0
Applications
  • FTTx (Fiber to the x) Networks: Used at distribution points (DPs) to split a main feeder cable into multiple drop cables going to homes or businesses.
  • Long-Haul & Metro Networks: For splicing cables over long distances, often placed in manholes or pedestals every few kilometers.
  • Network Repair: To quickly restore service after a cable break by splicing the broken fibers inside a closure.
  • Transition Points: Where an aerial cable needs to transition to an underground cable, or an outdoor cable enters a building.
D Type Fiber Optic Splice Closure Up to 45 Cores with 465x190x120mm Dimensions for Secure Fiber Joint Protection 1
Functions
  • Environmental Protection: The closure is sealed (often with gaskets and gel) to be watertight, dustproof, and resistant to various chemicals, ensuring the long-term reliability of the splices inside.

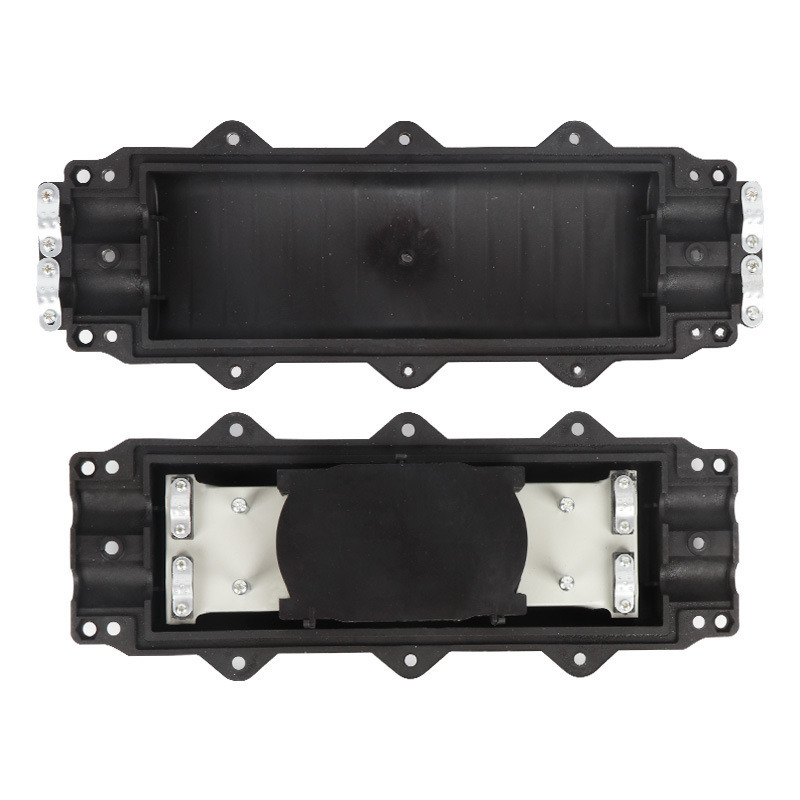

  • Splice Protection: It houses and protects the fragile fusion splice protectors or splice trays, organizing them securely to prevent microbending or breakage.
  • Fiber Storage: It provides ample space to store the slack fiber (excess fiber) that is left for future repairs, re-splicing, or reconfiguration.
  • Cable Securement: It has strong mechanical structures to grip and secure the strength members of the incoming and outgoing cables, relieving strain on the fibers themselves.
  • Organization & Management: It helps organize and route fibers neatly between different cables, which is crucial for maintenance and troubleshooting.
