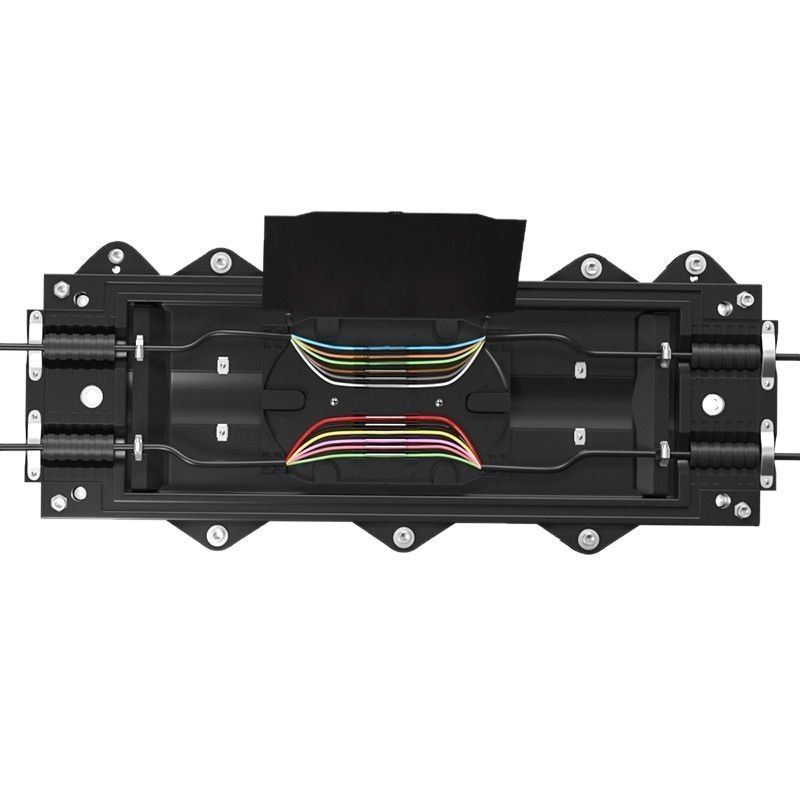

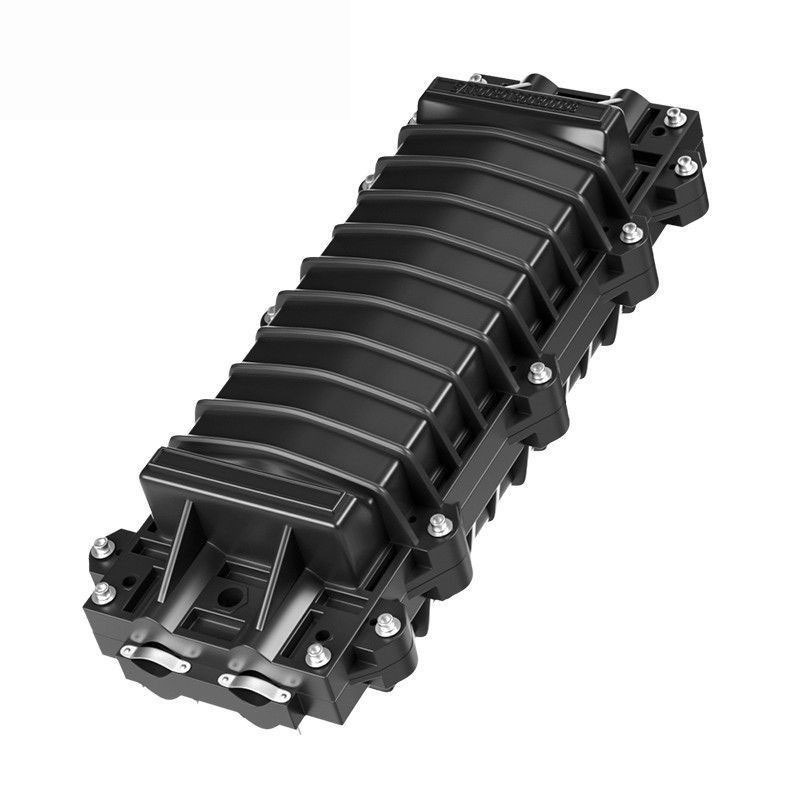

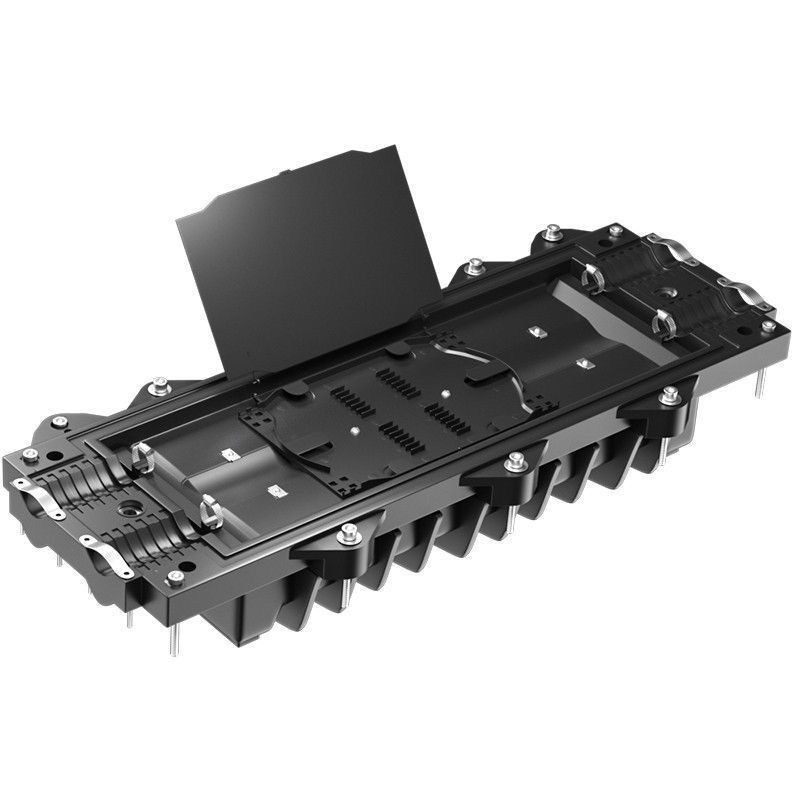

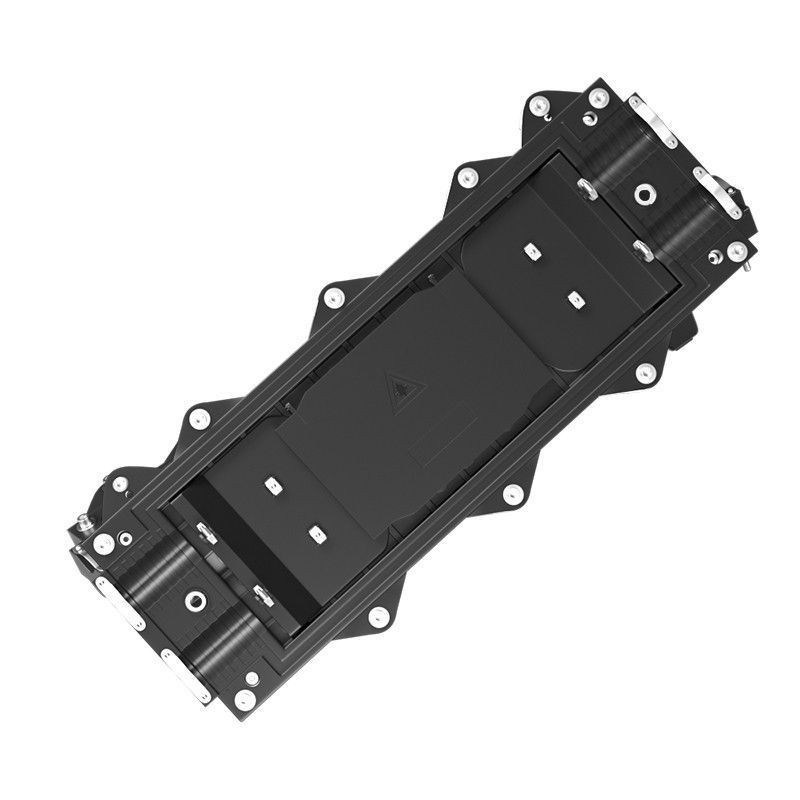

Outdoor Waterproof Fiber Optic Splice Closure with 2 In 2 Out Ports for 24-48 Cores in PP and ABS Materials

Outdoor Waterproof Fiber Optic Splice Closure with 2 In 2 Out Ports for 24-48 Cores in PP and ABS Materials
Outdoor Waterproof Fiber Optic Splice Closure with 2 In 2 Out Ports for 24-48 Cores in PP and ABS Materials Outdoor Waterproof Fiber Optic Splice Closure with 2 In 2 Out Ports for 24-48 Cores in PP and ABS Materials Outdoor Waterproof Fiber Optic Splice Closure with 2 In 2 Out Ports for 24-48 Cores in PP and ABS Materials Outdoor Waterproof Fiber Optic Splice Closure with 2 In 2 Out Ports for 24-48 Cores in PP and ABS Materials

Imagem Grande :  Outdoor Waterproof Fiber Optic Splice Closure with 2 In 2 Out Ports for 24-48 Cores in PP and ABS Materials

Detalhes do produto:
Lugar de origem: China
Marca: DOWELL
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 100pcs
Tempo de entrega: 7 a 15 dias
Habilidade da fonte: 1000pcs por 10 dias
Contato

Outdoor Waterproof Fiber Optic Splice Closure with 2 In 2 Out Ports for 24-48 Cores in PP and ABS Materials

Descrição
Material: PP, ABS, PP estabilizado contra UV, PC, ABS Faixa de temperatura operacional: -20°C a +55°C
Capacidade da tala: 24-48 Fibras Classificação IP: IP65
Destacar:

PP Fiber Optic Splice Closure

,

ABS Fiber Optic Joint Box

,

2 In 2 Out Cable Splice Closure

Outdoor Waterproof 2 In 2 Out Horizontal Fiber Optic Splice Closure 24 Cores 48 Cores
A fiber optic splice closure, also known as a fiber optic joint box or cable splice closure, is a protective device used in optical fiber communication systems. It provides a stable environment for fiber optic splices and protects them from external factors.
Specifications
Splice Capacity 24-48 Fibers
Cable Ports 1-2 Ports
IP Rating IP65
Material PP, ABS, UV-Stabilized PP, PC, ABS
Operating Temp. Range -20°C to +55°C
Mounting Type Pole, Wall, Strand
Key Features
  • Splicing Capacity: Different models have different splicing capacities. For example, the CommScope FOSC 400 D5 Fiber Optic Splice Closure can support a maximum of 1152 mass fusion splices or 576 single-fusion splices.
  • Cable Compatibility: Compatible with various types of optical cables, including loose-tube, central-core, and ribbon-fiber cables. The cable entry ports accommodate optical cables of different diameters.
  • Environmental Resistance: Features excellent waterproof, dustproof, and impact-resistant properties. Many fiber optic splice closures meet IP68 protection level, meaning they are completely dust-proof and can be submerged in water long-term without performance impact.
Classification by Sealing Method
  • Heat-Shrink Sealing Type: Uses heat-shrinkable materials to seal cable entry points and joint box body for waterproof and airtight effect.
  • Mechanical Sealing Type: Achieves sealing through mechanical components like O-rings, silicone rubber gaskets, or clamping devices. Example: Corning UCAO 4-9 Multi-Function Tray In-line Closure uses reusable silicone ring for sealing.

etiqueta:

outdoor fiber splice enclosure,

fiber splice case,

cable splice enclosure
